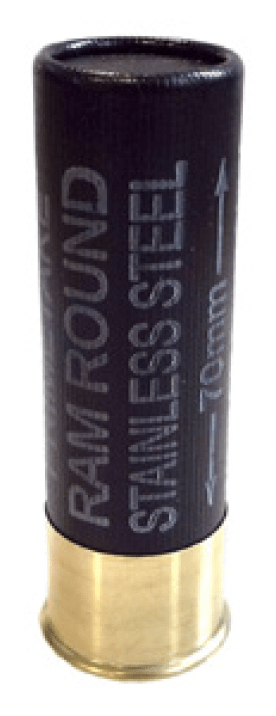

Door Breaching RAM Round
Primetake’s 12 gauge door RAM rounds are designed as a method of entry for use at close range against a primary target to achieve disruption of hinges, locks and other door furniture. The round incorporates a fully frangible projectile containing stainless steel powder, minimising the risk of ricochet and over penetration. These rounds are also available in a waterproof variant where weather, climate or water immersion (up to 10m) is a factor.
PT1030B
Projectile Material: Translucent plastic wad, micronized metal powder, black plastic cap
Case Material: Black Plastic / Brass Ferrule
Operational Temperatures: -21°C to + 63°C
Safety Temperatures: -45°C to + 71°C
Velocity: 400 m/s approx at 2 metres
Accuracy: 1m x 1m Target at 35 metres
Mean Chamber Pressures: 400 bar approx
Range: Up to 35m
Propellant Type: Double Base Nitrocellulose
Primer Type: Shotshell Primer
PT1030D
Weight: 46.70g Approx
Chamber Length: 70mm
Net Explosive Quantity: 1.75g Approx
Shelf Life: Up to 5 years under controlled storage conditions
Range: 25m Standoff
PT1030A
Material: Translucent plastic wad, micronized metal powder, black plastic cap
Case Material: Black Plastic / Brass Ferrell
Operational Temperatures: -21°C to + 63°C
Safety Temperatures: -45°C to + 71°C
Muzzle Velocity: 350 – 400 m/s at 2 metres
Accuracy: 1m x 1m Target at 35 metres
Penetration: 50mm thick MDF (representative of 30-60 minute fire doors)
Standoff: 25mm
Mean Chamber Pressure: 400 – 600 bar
Range: Up to 35m
Propellant Type: Double Base
Primer Type: Shotshell Primer
Weapon Compatibility: 3” chamber magnum proofed shotgun (true cylinder – unchoked)
PT1035A
Weight: 56.60g Approx
Chamber Length: 76mm
Net Explosive Quantity: 1.32g Approx
Shelf Life: Up to 5 years under controlled storage conditions
Range: 25m Standoff to 35m
PT3510A
Weight: 48.10g Approx
Chamber Length: 70mm
Net Explosive Quantity: 1.04g Approx
Shelf Life: Up to 5 years under controlled storage conditions
Range: 25m Approx
Fast Destruction
Primetake’s 12-gauge breaching rounds are highly effective in tactical policing operations for gaining rapid access to secured areas. The round has been developed with the primary advantage lying in its ability to neutralise locks, hinges, or barricades with precision and speed, enabling quick entry while maintaining the element of surprise. This capability is crucial in high-stakes scenarios such as hostage rescues, counter-terrorism, or law enforcement raids, where time is critical.
Low Risk Frangible Composite
The 12 gauge breaching round comprises of a powdered metal composite and is designed to disintegrate upon impact, minimising the risk of over-penetration and collateral damage. Moreover, the controlled destruction reduces the risk of injury to personnel or bystanders compared to traditional mechanical breaching methods, making Primetake’s door breaching round a safe and reliable choice for modern tactical policing teams.
Waterproof Variant
Offering a waterproof door breaching round has provided our policing clients a significant advantage, particularly in challenging environments where water exposure is unavoidable. Primetake’s waterproof breaching round variant will maintain it’s performance and reliability even in extreme weather conditions, high humidity, and when submersed in water (up to 10m), making them ideal for operations in flood-prone areas, and country’s regularly operating in wet climates. This innovation provides our clients with a dependable solution to protect critical operations.
